Curved Stairlift
Acorn 180
Designed for winding staircases with twists, bends, and curves
This model is specially designed for your curvier and more complicated staircases. Because a home is as unique as its owner, our lifts are custom-made to fit each home’s specific measurements without sacrificing the style and comfort. Acorn’s innovative rail module system allows direct installation to your stairs, rather than your wall, making installation easy and efficient.
The Acorn 180 is cost-efficient, easy-to-use, sturdy, and reliable. Acorn's top priority is to keep operating costs low and keep you safe and healthy. Even in the event of a power failure, the Acorn 180 functions without restrictions thanks to its backup battery and charging stations.
FREE Quote for a Curved Stairlift
We offer a FREE, no-obligation quote and home survey before you commit to your life-changing lift.
How Much Does a Stairlift Cost?
The cost of a curved stairlift from Acorn is excellent value for money because our customers receive their stairlift straight from the manufacturer.
Cost is determined based on the unique measurements of your home, and your specific needs. Because Acorn’s lifts are tailored to your home, costs vary and are unique to each installation.

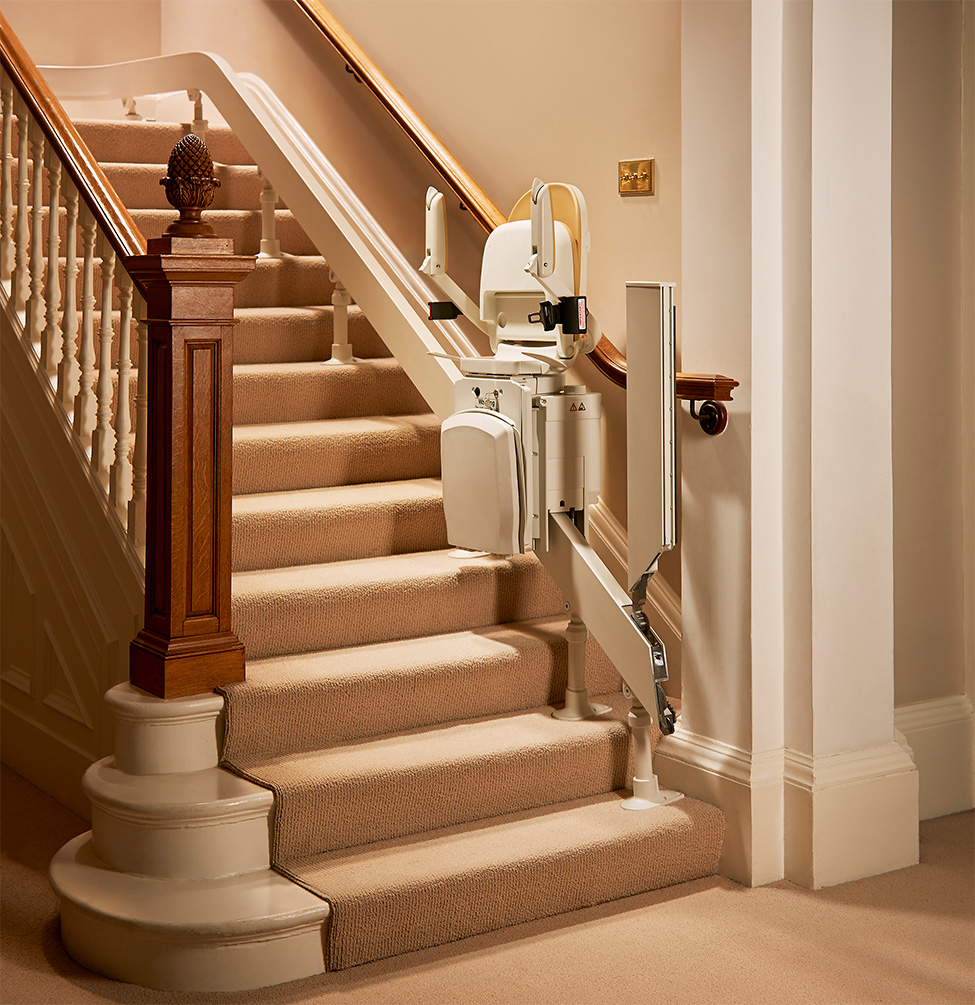

Optional Stairlift Hinged Rail
Acorn Stairlifts have all the safety and user-friendly features you need! All Acorn stairlifts are available with a unique, foldable rail option designed to remove any obstacle or trip hazard at the foot of the stairs.
Security and Convenience
- Reliable backup battery
- Simple diagnostic display
- Easy-to-use remote control
- Secure seat belt
- Convenient, folding foot rest

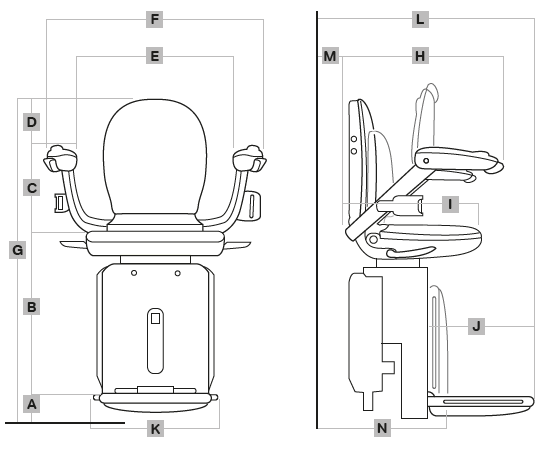

Technical Details
| Dimensions | mm | inch | |
|---|---|---|---|
| A | Floor to top of footrest | 50 | 2 |
| B | Top of footrest to top of seat | 485 | 19 |
| C | Top of seat to top of arms | 245 | 9.75 |
| D | Top of arms to top of seat back | 195 | 7.75 |
| E | Width between armrests | 480 | 19 |
| F | Overall width including seatbelt | 620 | 24.5 |
| G | Overall height | 975 | 38.25 |
| H | Length of arms from seat back | 460 | 18 |
| I | Length of seat base from seat back | 435 | 17 |
| J | Length of footrest | 360 | 14.25 |
| K | Width of footrest | 375 | 14.75 |
| L | Front of footrest to stringer | 640 | 25.25 |
| M | Back of seat to stringer | 35 | 1.5 |
| N | Folded width | 335 | 13.25 |
| O | Minimum width required to swivel at top | 690 | 27.25 |
| P | Distance from front of rail to stringer | 180 | 7 |
| Q | Height of leg | 125 (min) 650 (max) | 5 (min) 25.5 (max) |
| R | Front of drop nose to first stair | 450 | 17.75 |
This stairlift is independently tested and manufactured to the following standards:
- BS EN 81-40:2020 - European safety standard - ‘Specification for powered stairlifts’.
- CE mark - Acorn Stairlift meets the requirements of the applicable European Directive(s).
- ISO 9386:2-2000 International standard for stairlifts.
| Specifications | |
|---|---|
| Motor output speed | No greated than 0.15 metres per second |
| Method of drive | Rack and Pinion |
| Motor Power | 0.375KW |
| Carriage Power Supply | 29.6v D2C batteries |
| Maximum capacity | 120kg |
| Power supply input range | 100-240V AC |
* NOTE: Acorn, in keeping with its policy of continual development, reserves the right to change specification without notice. All measurements are approximate.
Angles
| Min | 0° |
| Max | 58° |
Maximum Rail Length
| 30 metres | 1181 inches |
Safety Features
Security and Convenience
- Reliable backup battery
- Simple diagnostic display
- Easy-to-use remote control
- Secure seat belt
- Convenient, folding foot rest
This stairlift is independently tested and manufactured to the following standards:
- BS EN 81-40:2020 - European safety standard - ‘Specification for powered stairlifts’.
- CE mark - Acorn Stairlift meets the requirements of the applicable European Directive(s).
- ISO 9386:2-2000 International standard for stairlifts.
Dimensions
Technical Details
| Dimensions | mm | inch | ||
|---|---|---|---|---|
| A | Floor to top of footrest | 50 | 2 | |
| B | Top of footrest to top of seat | 485 | 19 | |
| C | Top of seat to top of arms | 245 | 9.75 | |
| D | Top of arms to top of seat back | 195 | 7.75 | |
| E | Width between armrests | 480 | 19 | |
| F | Overall width including seatbelt | 620 | 24.5 | |
| G | Overall height | 975 | 38.25 | |
| H | Length of arms from seat back | 460 | 18 | |
| I | Length of seat base from seat back | 435 | 17 | |
| J | Length of footrest | 360 | 14.25 | |
| K | Width of footrest | 375 | 14.75 | |
| L | Front of footrest to stringer | 640 | 25.25 | |
| M | Back of seat to stringer | 35 | 1.5 | |
| N | Folded width | 335 | 13.25 | |
| O | Minimum width required to swivel at top | 690 | 27.25 | |
| P | Distance from front of rail to stringer | 180 | 7 | |
| Q | Height of leg | 125 (min) 650 (max) | 5 (min) 25.5 (max) | |
| R | Front of drop nose to first stair | 450 | 17.75 | |
Maximum Rail Length
| 30 metres | 1181 inches |
Specifications
| Specifications | |
|---|---|
| Motor output speed | No greated than 0.15 metres per second |
| Method of drive | Rack and Pinion |
| Motor Power | 0.375KW |
| Carriage Power Supply | 29.6v D2C batteries |
| Maximum capacity | 120kg |
| Power supply input range | 100-240V AC |
* NOTE: Acorn, in keeping with its policy of continual development, reserves the right to change specification without notice. All measurements are approximate.
Angles
| Min | 0° |
| Max | 58° |
Curved Stairlift Features
Single stairlift rail utilizing the innovative and unique Acorn FastTrack® System
Does not require any structural changes to your home
Affordable and reliable with a low cost of ownership

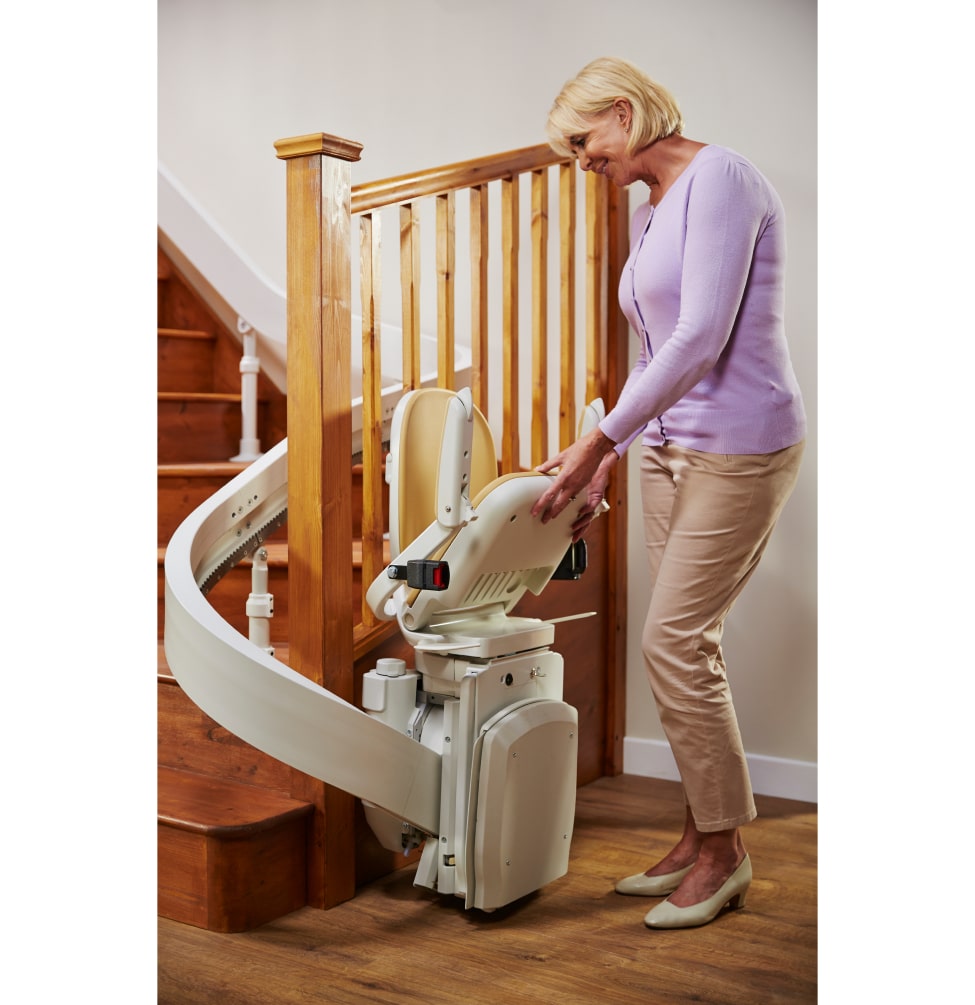

Slim design and collapsible when not in use
FastTrack®, our unique NEXT DAY stairlift installation service
12-month Manufacturer’s Guarantee
The Newest Stairlift Safety Feature
Acorn is proud to launch the ground-breaking StairSafe monitoring system for your Acorn Stairlift. This one-of-a-kind, additional feature will monitor the activity of your stairlift, providing you and your family with peace of mind.
The StairSafe system consists of a small module installed in your Acorn Stairlift which monitors the location, journey, and usage. All this data feeds back to StairSafe HQ, where if an error is detected, we'll notify you. StairSafe can ease some worries about safety and the possibility of having to pay for maintenance.
Frequently Asked Questions
Have more questions? Visit our FAQ page to get all your stairlift questions answered.
Can you shorten a curved stairlift?
Most Acorn stairlift rails can be shortened, but this must be done by an Acorn-approved technician.
Do curved stairlifts move at a fast speed?
The maximum rated speed is 0.15 meters per second (0.34 mph) to ensure safety while riding.
Can a stairlift go around corners?
Here at Acorn Stairlifts, we manufacture stairlifts that can travel around corners, spiral staircases, and across landings. Our stairlifts are customised to fit each individual staircase.
How long does it take to install a curved stairlift?
1 to 2 hours is the typical time that it takes to install a straight Acorn stairlift. However, with a more complex installation for a curved staircase, it can take about 4 to 5 hours. You will be guided through the simple controls of your Acorn stairlift by the technician after installation.
